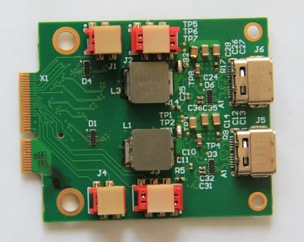

USBC2: USB-C Two Port Card

USBC2: USB-C Two Port Card

Technical Data:

  • USB Type-C V1.0
  • Uses Xavier AGX USB MACs

Availability: In stock, request quote

NWG1: 1Gbit Ethernet Card

Technical Data:

  • GbE transceiver
  • 1000BASE-T, 100BASE-TX and 10BASE-T
  • Based on Marvel 88E1512

Availability: In Stock, request a quote

FPDI4: FPD-Link III four Input Card

FPDI4: FPD-Link III four Input Card

Technical Data:

  • CSI-2 data rate scalable to 400/800 Mbps/1.5 Gbps/1.6 Gbps
  • Allows connection of four active sensors
  • Power over coax
  • Supports single ended coaxial or shielded twisted-pair (STP) cable
  • Adaptive Receive Equalization
  • Based on TI DS90UB954-Q1

Availability: In stock, request a quote

HDMI4KO2: 4k HDMI two Output Card

HDMI4KO2: 4k HDMI two Output Card

Technical Data:

  • 2 x HDMI Type A HDMI2.0
  • 4k@60fps

Availability: In stock, request a quote

AGXC512: Modular Carrier Board for NVIDIA Jetson AGX

AGXC512:Modular Carrier Board for NVIDIA Jetson AGX
(Configuration example only, Jetson AGX and carrier boards not included)

Technical Data:

  • Power 12V
  • 1 x HDMI2.0 Output
  • 1 x USB 3.0
  • 1 x USB 2.0
  • 1 x USB-C
  • 1 x PCIe E-Key slot
  • 2 x PCIe B-Key slot
  • 4 x PCIe M-Key slot
  • 8 x 4-Lane MIPI-CSI

Availability: In stock, request a quote

HDMI4KI2: 4k HDMI two Input Card

Technical Data:

  • HDMI2.0b, HDMI1.4
  • compliant with HDCP2.2
  • 4k@30fps
  • 2k@ 60fps
  • YcBCr4:2:2, 16/20/24-bit
  • RGB, 16/20/24-bit
  • Based on Lontium LT6911UXC
  • NVIDIA Jetson driver available

Availability: In Stock, request a quote
